405nm 450nm 523nm 638nm 685nm 20mW Multi-Wavelengths Single-Channel Output Single / Multi Mode Fiber Coupled Laser System

  • 405nm 450nm 523nm 638nm 685nm 20mW Multi-Wavelengths Single-Channel Output Single / Multi Mode Fiber Coupled Laser System
  • 405nm 450nm 523nm 638nm 685nm 20mW Multi-Wavelengths Single-Channel Output Single / Multi Mode Fiber Coupled Laser System
Place of Origin CHINA
Marca AIMLASER
Certificação FDA
Minimum Order Quantity 1
Delivery Time 5-10 days
Payment Terms ,T/T,Western Union,PayPal

Contacte-me para amostras grátis e vales.

Whatsapp:0086 18588475571

bate-papo: 0086 18588475571

skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
Product Name Five Wavelength Laser System Wavelength 405nm, 450nm, 488nm, 505nm, 520nm, 532nm, 638nm, 660nm, 685nm, 785nm, 808nm, 830nm, 850nm, 905nm, 940nm, 980nm( can choose a combination of two, three and four wavelength)
CW Output Power Depends on the wavelength Fiber Core Diameter 3.5um, 4um, 5um, 25um, 50um, 62.5um, 105um, 200um, 400um, 600um, 800um optional
Long time power stability 3%/1% Warranty 1 Year
Deixe um recado
Descrição de produto

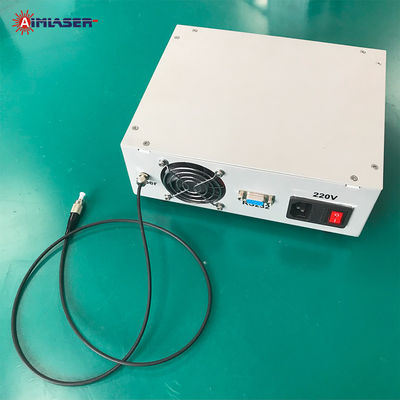

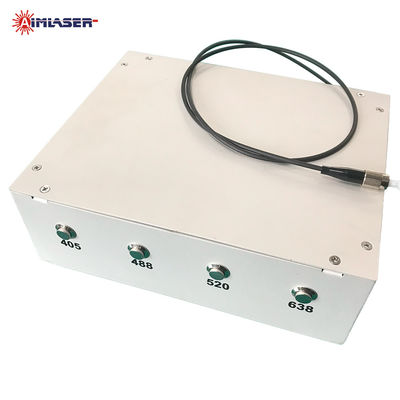

405nm 450nm 523nm 638nm 685nm 20mW Multi-Wavelengths Single-Channel Output Single / Multi Mode Fiber Coupled Laser System



Multi-Wavelength Single-Channel Fiber Laser System

Developed and manufactured by AIMLASER, this high-stability multi-wavelength single-channel laser system offers outstanding performance and proven reliability. It supports wavelength combinations from 375nm to 1550nm, including dual-, triple-, quad-, and five-wavelength configurations based on user requirements.



Each wavelength is independently switchable and equipped with its own power adjustment knob. The system is compatible with both single-mode and multi-mode fiber outputs. By adjusting the output of different lasers, users can combine the wavelengths or colors they need. Customizable parameters include output power, fiber core size, fiber length, and connector type (e.g., FC, SMA). Optional features include TEC temperature control and air cooling for enhanced stability.



Paired with a dedicated modulation module and high-precision driver, this system is easy to operate, maintenance-free, and built for long service life. Custom solutions are available to meet application-specific wavelength or color mixing needs.

405nm 450nm 523nm 638nm 685nm 20mW Multi-Wavelengths Single-Channel Output Single / Multi Mode Fiber Coupled Laser System 0405nm 450nm 523nm 638nm 685nm 20mW Multi-Wavelengths Single-Channel Output Single / Multi Mode Fiber Coupled Laser System 1

Features

  • Multiple wavelength and power level options.
  • Shared optical output port.
  • Serial interface with software control for on/off switching and power adjustment of each channel.
  • High stability and excellent signal-to-noise ratio.
  • Fully customizable to meet specific requirements.

​

Specifications

Item Specifications
Center Wavelength 405, 450, 488, 505, 520, 532, 638, 660, 685, 785, 808, 830, 850, 905, 940, 980( can choose a combination of two, three, four, and five wavelengths)
Output Power Depends on the wavelengths
Fiber Core Diameter 3.5, 4, 5, 25, 50, 62.5, 105, 200, 400, 600, 800 optional
Long time power stability 3%/1%
RMS Noise 0.03
Peak Value Noise 0.01
Connector FC/SMA905/SC/ST
Fiber Length 1m(customizable)
Operating Mode CW/RS232 software control
Power Supply AC220V/DC12V
TTL modulation 20K
Operating Temperature 25℃
Cooling method Air Cooling/TEC
Warm-up time 5min
Housing Material Anodized Aluminum
Life Span ≥10,000Hrs
Remark External computer serial port and software can control the switch and power of each laser



Applications

  • Biomedical imaging and diagnostics

  • Scientific research and laboratory experiments

  • White light generation and display

  • Laser spectroscopy

  • Full-color holography

  • Fluorescence excitation

  • Optical coherence tomography (OCT)

  • Color mixing and lighting systems

  • Environmental sensing and detection

  • Interference and metrology systems

  • Optical communication testing

​

​Trade Terms

1) Payment: T/T, PayPal, Western Union, etc.

2) Shipment: FedEx, DHL, UPS, etc.

3) Delivery Time: 5 - 20 days.

4) Shipment Terms: FOB Xi'an, China.



Our Services

A. All products come with a one-year warranty.

B. Use original LDs from Arima, Osram, Nich, and so on to guarantee reliability.

C. Product conforms to FDA, IEC, and GB standards.

D. Strictly following ISO9001:2008 quality system.

E. Provide OEM & ODM services, support customized for your requirement.

F. Strong design and production capabilities.



405nm 450nm 523nm 638nm 685nm 20mW Multi-Wavelengths Single-Channel Output Single / Multi Mode Fiber Coupled Laser System 2
