1064nm 50mJ DPSS Nanosecond Pulsed Laser M²≤2 1W High Energy Laser for Rangefinder LIBS Spectroscopy with Driver
Detalhes do produto
| Nome do produto | Laser pulsado de nanossegundo DPSS de 1064 nm | Comprimento de onda | 1064 ± 1 nm |
|---|---|---|---|
| Tipo Laser | Laser de estado sólido bombeado por diodo (DPSS) | Energia de saída | 50mj |
| Modo a laser | Pulsado | Largura de pulso | 8-11s |
| ² de m | ≤2 (resfriamento de água) | Garantia | 1 ano |
| Destacar | 1064nm DPSS nanosecond pulsed laser,50mJ high energy laser for rangefinder,1W M²≤2 laser for LIBS spectroscopy |
||
Descrição de produto

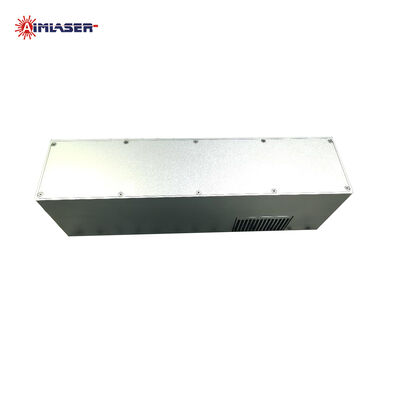

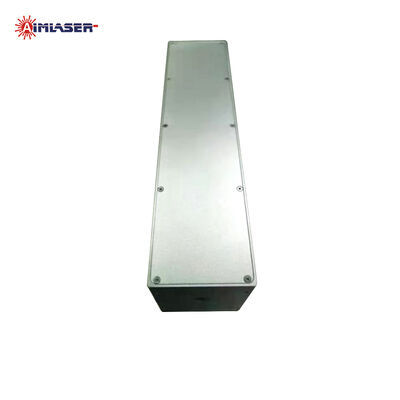

1064nm 50mJ DPSS Nanosecond Pulsed Laser M²≤2 1W High Energy Laser for Rangefinder LIBS Spectroscopy with Driver
Product Description
AIMLASER provides customizable 1064nm DPSS (Diode-Pumped Solid-State) nanosecond-pulsed laser specially designed for portable laser rangefinders, spectroscopy instruments, and advanced scientific research. Its compact design delivers high-energy pulses, making it ideal for applications in scientific research, medical diagnostics, biological detection, and LIBS (Laser-Induced Breakdown Spectroscopy).
Key Features:
-

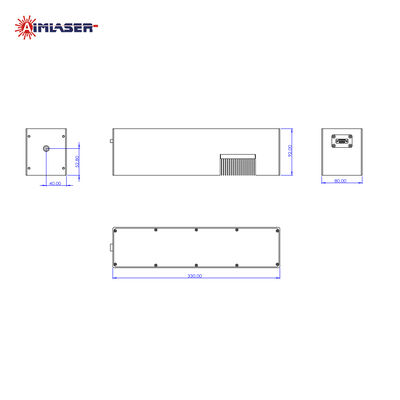

High Integration: Laser and driver are combined in a compact unit (330mm × 92mm × 80mm), powered directly via 24V DC and controllable through RS422 for easy integration into your system.
-
High Energy Output: Emits pulses at 1064 nm (optional 532 nm) with pulse energy >50 mJ and pulse width around 10 ns.
-
Stable Performance: Ensures consistent pulse energy and repetition rate for precise measurements.
-
Versatile Applications: Suitable for laboratory experiments, medical diagnostics, environmental monitoring, and industrial spectroscopy.
-
Durable and Reliable: Air-cooled design, operating temperature 10–35°C, expected lifetime up to 10,000 hours, backed by a 1-year warranty.
Specification
|
ITEMS |
SPECIFICATIONS |
|
Product Name |
DPSS nanosecond pulsed laser |
|
Wavelength |
1064±1 nm |
| Average Output Power | 1W |
|
Output Energy |
50mJ |
|
Laser Mode |
Pulsed |
|
Line Width |
8-11ms |
| Frequency | 20Hz |
| Cooling method | Air/Water cooling |
|
M² |
≤2(Water cooling) |
|
Operating Voltage |
24V DC |
|
Working Temperature |
10℃ to 35℃ |
| Life Span | 10,000Hrs |
Trade Terms
1) Payment: T/T, PayPal, Western Union, etc.
2) Shipment: FedEx, DHL, UPS, etc.
3) Delivery Time: 5 - 20 days.
4) Shipment Terms: DAP, DDP, EXW
Why Choose Us
A. Over 20 years of laser experience.
B. Large-scaled facility 4,500 sq..m2 and over 180 professional staff.
C. Use original LDs from Arima, Osram, Nicha, and so on to guarantee reliability.
D. Strictly following ISO9001:2008 quality system.
E. Product conforms to FDA, IEC, and GB standards.
F. Strong design and production capabilities, partners of famous brands.
FAQ
Q1: Do you support the required solutions?
A: Yes, we offer customization options for wavelength, output power, line width, working voltage, housing dimensions, etc.
Q2: What certifications do you have?
A: We operate an ISO 9001 certified factory, and our products are certified to meet international standards such as FDA, CE, RoHS, GB, and others.
Q3: Do you offer a warranty?
A: Yes, we offer a free one-year warranty
